What is a Quick shutter door?
2023 04/15

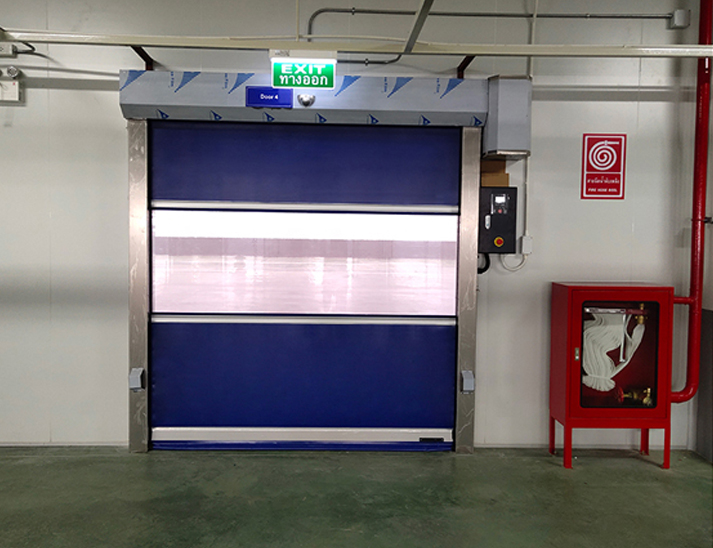

Quick rolling shutter door can meet the high performance logistics and clean workshop and other places, the main role is to quickly isolate air convection so that workshop air quality dust-free level, with insulation, moisture, dust, wind, sound insulation, odor prevention and other functions. With the increase of product quality requirements in China, fast door has become an important pillar industry of the industrial door industry. Represented by Haifeng Door Industry, it has accumulated 28 items and undertaken difficult projects, and can provide a full set of three-dimensional design schemes to match the requirements of the site and architectural style.
Top structure: The transmission mechanism of fast soft curtain door (fast rolling curtain door) is installed in the top shelf of the door hole. The shelf is made of 2mm thick galvanized steel plate. Both ends of the shelf are made of 6mm thick steel plate. The reel is installed in the case and consists of a reel, a shaft end and a bearing seat. The size of the drum is calculated according to the height and width of the door, and the reasonable size is selected. On this door, the diameter of the drum is 219mm.
Guide box: The guide box is made of 2mm galvanized steel plate and is fixed to the wall on the two sides of the door opening. The chassis is fixed to the top of the guide box and the wall by bolts. Sealing hair strips are fixed on the two sides of the guide box. To meet certain sealing requirements, a position for installing an infrared monitor is reserved at the bottom of the guide box about 1m above the ground. The guide groove box is sprayed with plastic, the same color as the case, and the brush in the guide groove is against the curtain cloth to limit the curtain cloth will not leave the guide groove, so that when the car hits the door, the curtain will leave the guide groove, so as to avoid the door body damage.

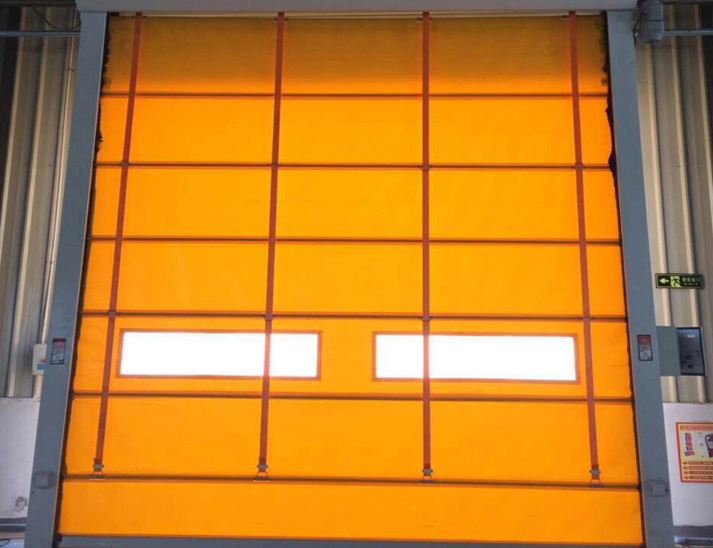

Curtain fabric: The curtain fabric is made in sections, with the height of each section being about 700mm. Each section of curtain fabric is connected into an integral curtain fabric through special aluminum wind resistant strips. The curtain fabric is 1.2mm thick, which has the advantages of high strength, impact resistance and not easy to Pierce. δ=2mm transparent PVC material can also be used to make the curtain fabric or part of transparent PVC material to make the curtain fabric, so as to observe the situation on the two sides of the soft curtain door. The bottom of the curtain fabric is provided with an aluminum bottom beam, and the top of the anti-collision soft bag curtain fabric is fixed on the drum by screws and laminate.
Driving device: The soft curtain door shaft is directly driven by the deceleration motor, and the decelerator of different speed ratios is selected according to the requirements of the lifting speed to achieve the required lifting speed. The fast speed can reach more than 80cm/s. The control line adopts frequency conversion control, so that the curtain can start slowly and stop slowly during operation, and the curtain can stop in place and stop moving during operation.
Control: The soft curtain door is provided with a control box, which can operate "open", "stop" and "close" in the control box and can be set up on the other side of the control box wall control button operation "open", "stop" and "close". Remote control operation, radar detection or geomagnetic induction can be selected as required to automatically open and close the door. Infrared monitoring device is set on the two sides of the door. When the door body moves and obstacles cross the door, the curtain movement will stop or return to the open state.
